LASER INNER ENGRAVING MACHINE

Laser inner engraving machine is a laser device based on nonlinear optical phenomena. It can create 2D or 3D patterns within transparent materials such as crystal, glass, and acrylic through micro-explosion points at the focal point.

Model: JL-UV5-R

Power: 5w

Descriptions

Item	Laser engraving machine
Power	5w
Repetition frequency	20-100KHz
Engraving model	2D/3D engraving
Max engraving size	70*70mm
Marking depth	≤0.5mm
Marking line speed	≤12000mm/s
Minimum line width	0.01mm
Minimum character	0.4mm
Repeatability	0.02mm
Voltage	AC 220V+5%/50Hz/5A
Deminsion	（32+21）cm5570cm
Weight	45KG

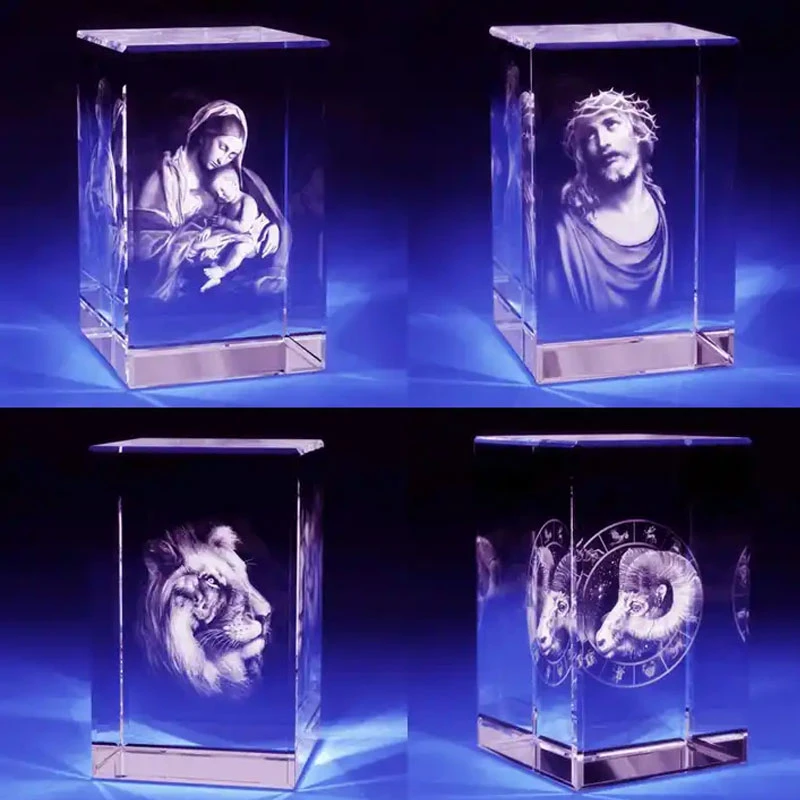

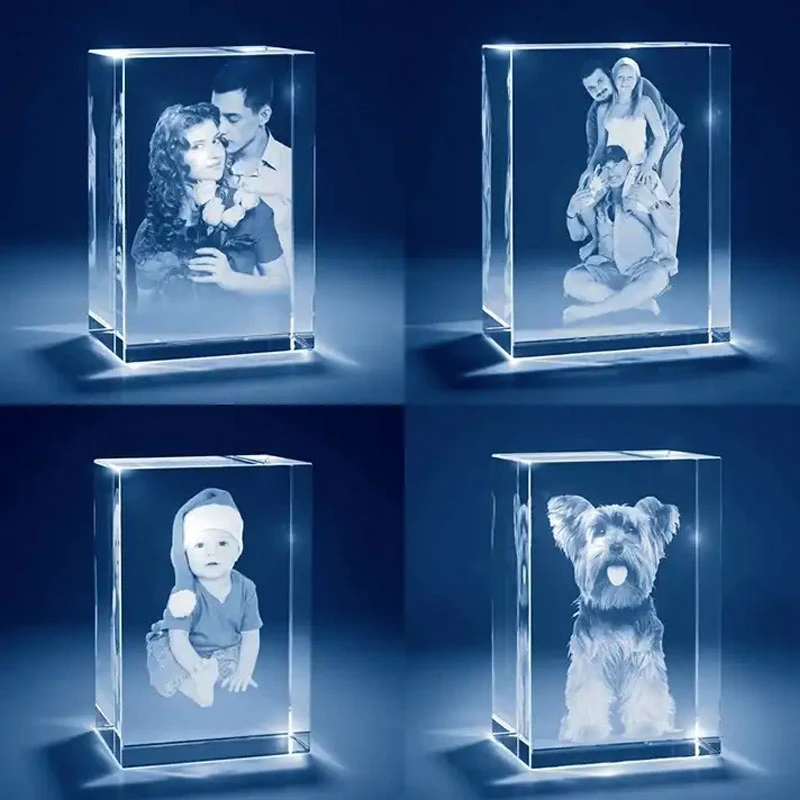

This equipment uses a 5w UV laser and galvanometer technology, supporting 2D/3D portrait, model, and scene engraving.

LASER inner ENGRAVING MACHINE FEATURES:

With high-speed galvanometer technology, enabling finer light spots and faster engraving speeds.

For the engraving precision, the minimum light spot diameter can reach 10μm, supporting detail engraving down to 0.01mm, resulting in better, brighter, and smoother engraving effects.

Equipped with a special internal engraving software, it can precisely create 3D portraits.

4. Suitable for personalized customization or mass production. One machine can meet the production volume of multiple online stores and e-commerce sales.
