JH-FB30 Split Fiber Laser Marking Machine 30w

The laser beam is used to shoot the surface of the material, causing evaporation, discoloration, etching and other reactions on the surface of the material, thereby permanently marking the material.

Fiber laser suitable for engraving Metal materials, like Stainless steel, Iron, Aluminum, Carbon steel,etc. Also can marking some hard plastics, rubber products. (The effect depends on the material)

Model	JL-FB30
Power	30w
Machine type	Split type

Descriptions

JH-FB30 Split Fiber Laser Marking Machine 30w Parameters：

Item	Split fiber laser marking machine
Power	30w
Repetition frequency	20-100KHz
Marking range	100*100mm(70-250mm optional)
Marking depth	≤0.5mm
Marking line speed	≤12000mm/s
Minimum line width	0.01mm
Minimum character	0.4mm
Repeatability	0.02mm
Voltage	AC 220V+5%/50Hz/5A
Deminsion	（32+21）cm5570cm
Weight	55KG

JH-FB30 Split Fiber Laser Marking Machine 30w Features:

Excellent beam quality: compared with conventional solid laser marking machines, its base mode output, focusing spot diameter is less than 20um. The divergence Angle is only 1/4 of that of the semiconductor pump and laser. Especially suitable for precise and fine marking.
Low cost to use: conversion efficiency of up to 30%. The power consumption of the whole machine is only 600W, which is 1/10 of that of the lamp pump solid-state laser marking machine and 1/3 of that of the semiconductor laser marking machine, greatly saving energy expenditure.
Maintenance-free and long-life: the laser secondary tube is used as the pump source, with a fully closed optical circuit design, and the average trouble-free working time exceeds 100,000 hours.
Processing speed: processing speed is 5-10 times than the traditional laser marking machine.
Small size: convenient production site flexible adjustment station.

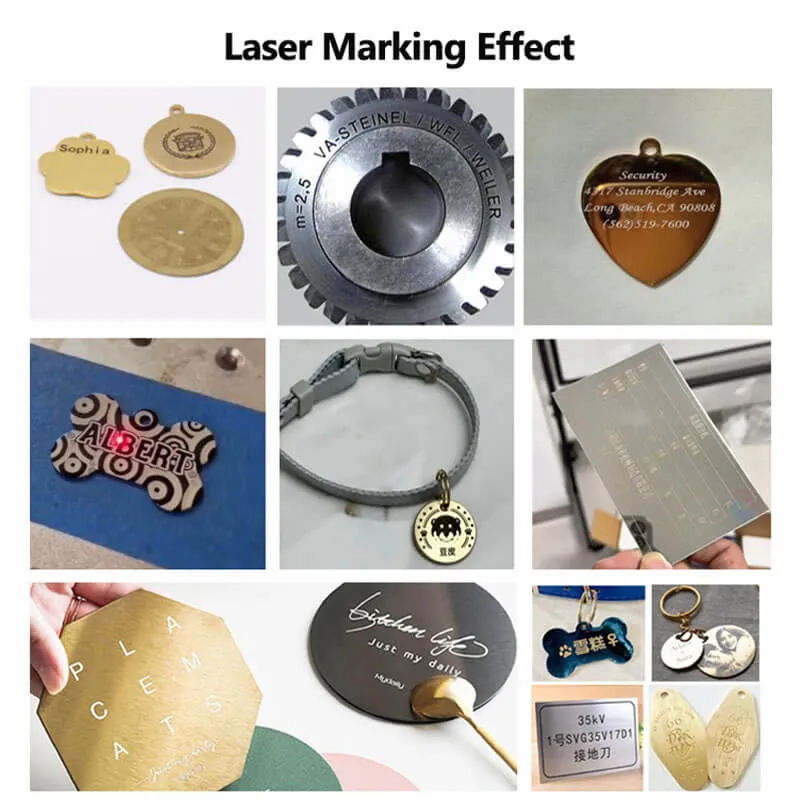

JH-FB30 Split Fiber Laser Marking Machine 30w Applications:

Laser marking processing of high quality and large quantity products, mainly used in electronic components, automobile instrument keys, mobile phone keys, mobile phone shell, soundTransparent key, one-dimensional, two-dimensional laser bar code, silicon chip marking.
