5W PCB UV LASER MARKING MACHINE

PCB laser marking machines are key pieces of equipment in modern electronics manufacturing for high-precision, permanent marking on printed circuit boards.

They are primarily used to mark QR codes, barcodes, serial numbers, production dates, and company logos to achieve end-to-end product traceability and quality control.

Descriptions

Item	UV PCB laser marking machine
Laser Power	5w
Laser wavelength	355nm
Laser beam quality	＜1.2
Pulse frequency	20kHz-150kHz
Pulse width	＜20ns
Marking speed	≤7000mm/s
Marking range	110110mm/150150mm/175*175mm(Optional)
Minimum line width	0.01mm
Minimum character	0.1mm
Repeatability	±0.002mm
Cooling system	Water cooling
Visual system (CCD)	It features automatic mark point positioning, barcode recognition (QR/Code 128), and post-marking code verification.
Line Interface	Compliant with SMEMA standards, enabling seamless integration with front-end and back-end SMT equipment.
Software Functions	Supports exporting MES data, database comparison, and automatic generation of serial numbers.
Power consumption	3Kw
Work environment	0-35℃，Humidity ＜90%
Weight	450KG

PCB UV LASER MARKING MACHINE ADVANTAGES：

Ultra-fine marking: The short wavelength of ultraviolet light and the extremely small focused spot (typically only about 20 micrometers in diameter) enable the marking of micrometer-level QR codes, barcodes, and logos, meeting the trend of component miniaturization.
Prevention of damage to precision circuits: The cold-processing characteristics ensure that the PCB substrate (such as FR4) will not be scorched, deformed, or delaminated during the marking process, making it particularly suitable for heat-sensitive FPC flexible circuit boards.
High contrast and permanence: It can produce clear, high-contrast color changes on various solder mask layers such as green, white, and black solder mask, and the marking is corrosion-resistant and heat-resistant.
Multi-material compatibility: In addition to standard PCBs, it is also widely applicable to marking IC chips, ceramic substrates, glass, and various engineering plastics.

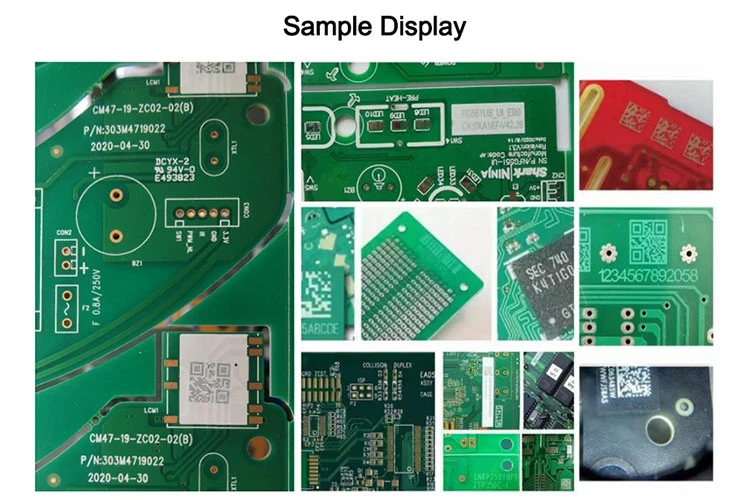

PCB UV LASER MARKING MACHINE APPLICATIONS:

Micro QR Code: Marking on a piece of board the size of a fingernailOr even smaller QR codes to store information such as production date, batch number, and component origin.
Solder Mask Color-Changing Marking: Forming high-contrast black or white text on the surface of solder mask layers of different colors such as green, blue, white, and black. No ink is required, and it is resistant to strong solvent cleaning.
Multilayer Board Edge Marking: Marking serial numbers in narrow seams along the edges of PCBs for easy reading when stacked.
