Galvanometer laser welding machines are high-precision welding devices that utilize high-speed galvanometer scanning lenses to replace traditional two-dimensional worktables.
Compared to traditional welding methods that use motors to drive workpiece movement, its welding efficiency can typically be increased by 4 to 10 times.
| Item | Battery laser welding machine |
| Laser Power | 2000w |
| Laser Wavelength | 1070±20nm |
| Fiber core diameter | 100μm |
| Weld penetration depth | 0.5-3mm |
| Scan range | 100*100-200*200mm |
| Cooling system | Water cooling |
| Welding speed | 30mm/s – 150mm/s |
| Idle speed | 3000mm/s – 8000mm/s |
| Oscillation frequency | 100Hz-400Hz |
| Oscillation Width | 0.5mm – 2.0mm |
| Working mode | Circle, straight line, ring, figure 8 |
| Duty cycle | 100% |
| Peak power | 60%-90% |
| Work environment | 0-40 ℃，Humidity ＜70% |
1. Extremely fast welding speed, driven by a galvanometer motor (several times/hundreds times faster than ordinary welding).

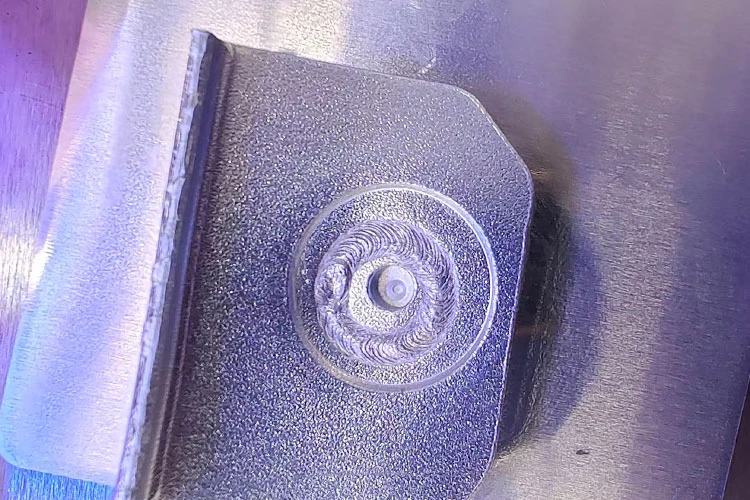

2. High trajectory flexibility, allowing for arbitrary trajectories (circular, spiral, double figure-eight, etc.), suitable for sealing welding.
3. High welding quality, with fine and smooth weld seams, good depth consistency, and few pores.

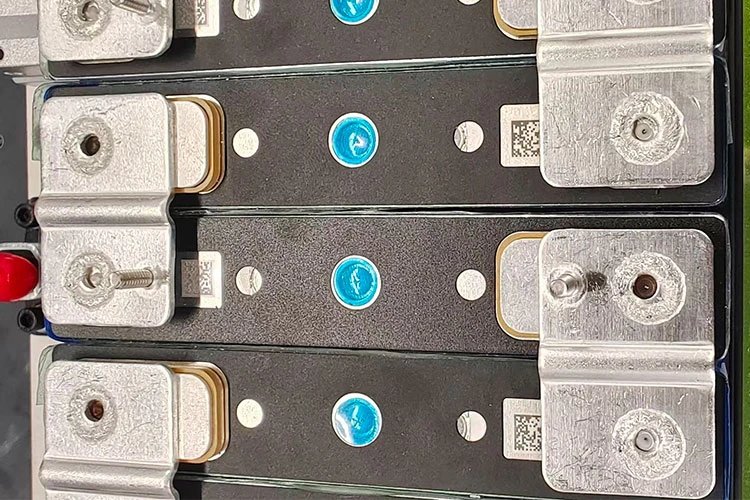

4. In the welding of power battery CCS (lightweight connection components) and explosion-proof valves, the galvanometer can quickly scan out perfect circular or spiral weld seams, reducing the heat-affected zone (preventing cell burnout) and achieving extremely high welding efficiency.
