1500W ROBOT LASER WELDING MACHINE

The robot welding machine adopts the method of laser welding and robot arm to realize multi – track welding.

It is easy to operate, quick to get started, low energy consumption, economical and environmentally friendly, convenient and practical, which can automatically and quickly complete the entire welding operation, and improve product quality, Effectively solving the disadvantages of traditional welding like time – consuming, material – consuming, and not environmentally friendly.

Descriptions

Item	Robot laser welding machine
Laser Power	1500w
Laser wavelength	1080nm
Power adjust range	10%- 100%
Power stability	<3%
Maximum modulation frequency	20KHz/50KHz(customized)
Working voltage frequency	380v 50/60Hz
Control Mode	TTL Leve/GUI
Connector type	QBH
Fiber parameters	50~100 μm
Multi-dimensional table	Six-axis robot
Welding depth	0.1mm- 5mm stainless steel plate (Depend on laser power)
Aiming and positioning	CCD monitoring system + red light indicator (customized) Accuracy:±0.1mm
Software system	Dedicated software
Focus scope	180 mm
Host power consumption	4.5KW/5KW/5.5KW/6KW/8KW
Cooling system	Integrated thermostat refrigerator
Electricity demand	Three-phase AC380V 土 20V，50/60Hz
Installation area	2mx2.5m
Best working environment	Clean and dust-free, no vibration source, 13C -28C, humidity 5%- 75%
Consumables	Filter, protective lens

1500W ROBOT LASER WELDING MACHINE FEATURES：

Utilizes a robotic arm for unobstructed welding operations on irregular surfaces.
High welding speed, capable of welding thicknesses from 0.1mm to 5mm. Minimal heat-affected zone and deformation, resulting in smooth, aesthetically pleasing welds.
The laser is consumable-free and maintenance-free, highly efficient and stable, with a lifespan of nearly 100,000 hours. The machine’s power consumption is only one-eighth that of YAG laser welding machines and traditional argon arc welding, spot welding, and plasma welding.
High electro-optical conversion efficiency, more than 5 times that of YAG lasers, resulting in welding efficiency 5 times that of YAG pulsed laser welding machines.
Simple operation, easy to learn, significantly reducing labor costs and enhancing the factory’s image.

High operating speed and high repeatability effectively save labor costs, rapidly increase production capacity, are suitable for mass production, shorten delivery cycles, and ensure stable, uniform, and consistent product quality, guaranteeing product quality!

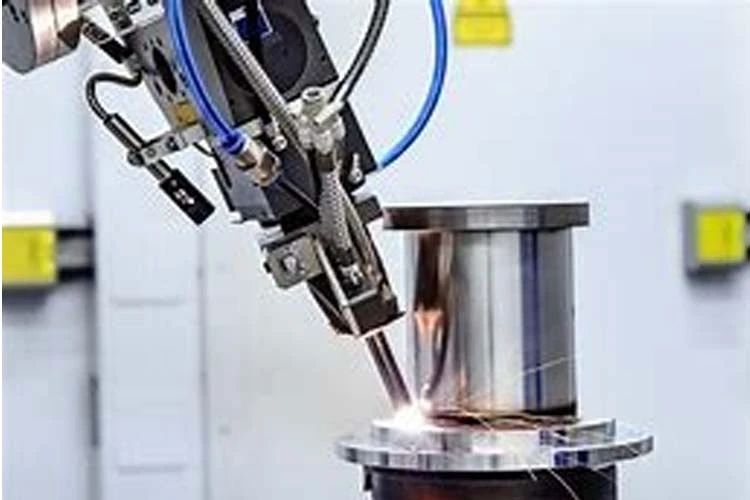

1500W ROBOT LASER WELDING MACHINE APPLICATIONS:

Robot laser welding belongs to a kind of Precision welding which usually been Used in the electronics industry, automobile industry, medical industry, hardware industry, instrumentation industry, etc., such as: 5G communication cabinets, stainless steel sinks, optical fiber coupling devices, automotive steel sheets, structural parts, stainless steel products, etc.
